Bowl Shaped 250mm Turbo Segmented Diamond Grinding Cup Wheels

Product Categories
Wuhan Wanbang Laser Diamond Tools Co., Ltd.
Contact Now

Bowl Shaped 250mm Turbo Segmented Diamond Grinding Cup Wheels

  • 1
  • 2

Brand Name : WANBANG

Model Number : 10 inch

Certification : ISO9001

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T

Supply Ability : 10000pcs/month

Delivery Time : 10-15 days delivery time

Packaging Details : carton case/wooden case/pallet

Abrasive : diamond

Shape : bowl-Shaped

Bonding agent : Metal

Hardness : Hard,Standard,Soft

Product name : Diamond Grinding Cup Wheels

Application : Concrete and stone floor

Color : Customize,Red/Nature/Blue/Yellow

Type : Single/Double row/ Segmented Turbo

Usage : masonty,hard concrete and bricks,Ceramic Tile,Asphalt / bricks / reinforced concrete structure

Material : Diamond + Metal

Advantage : Fast cutting speed,Operator Safety

Diameter : 250mm/10''

Seg. No. : 20

Contact Now

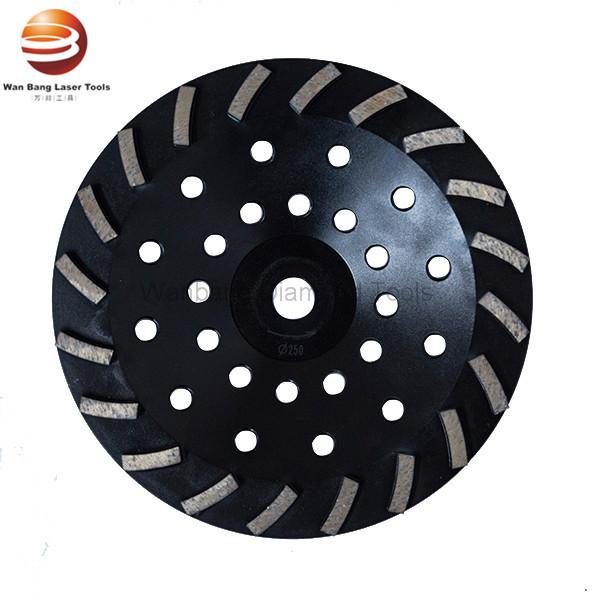

250mm 10'' Bowl Shaped Turbo Diamond Segments Grinding Cup Wheels

Diamond floor grinding cup wheels- Turbo
Applications: Rapid removal of concrete, granite, asphalt, marble and other construction materials
* Good for general grinding and heavier stock removal
* Large grinding segments with heat treated steel bodies which provides increased durability and wheel life.
* Soft, medium, hard Bond
* Fine, Medium, and Course grit available

Bowl Shaped 250mm Turbo Segmented Diamond Grinding Cup WheelsBowl Shaped 250mm Turbo Segmented Diamond Grinding Cup Wheels

Specifications:

Diameter Seg.size Seg.No. Grade Arbor
4" 105mm 22*7*5 9 Standard 7/8"-5/8"-M14
4" 105mm 22*7*5 9 Pro. 7/8"-5/8"-M14
4" 105mm 21*7*5 15 Standard 7/8"-5/8"-M14
4" 105mm 21*7*5 15 Pro. 7/8"-5/8"-M14
4.5" 115mm 23*7.5*5 9 Standard 7/8"-5/8"-M14
4.5" 115mm 23*7.5*5 9 Pro. 7/8"-5/8"-M14
4.5" 115mm 23*7*5 18 Standard 7/8"-5/8"-M14
4.5" 115mm 23*7*5 18 Pro. 7/8"-5/8"-M14
5" 125mm 23*7*5 9 Standard 7/8"-5/8"-M14
5" 125mm 23*7*5 9 Pro. 7/8"-5/8"-M14
5" 125mm 23*7*5 18 Standard 7/8"-5/8"-M14
5" 125mm 23*7*5 18 Pro. 7/8"-5/8"-M14
7" 180mm 28*8*5/7 12 Standard 7/8"-5/8"-M14
7" 180mm 28*8*5/7 12 Pro. 7/8"-5/8"-M14
7" 180mm 28*8*5/7 24 Standard 7/8"-5/8"-M14
7" 180mm 28*8*5/7 24 Pro. 7/8"-5/8"-M14
10" 250mm 28*8*7 20 Standard 7/8"-5/8"-M14
10" 250mm 28*8*7 20 Pro. 7/8"-5/8"-M14

Certificates

Company Information

WUHAN WANBANG LASER DIAMOND TOOLS CO., a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999. We are specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.

As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
